May 2018

In this first part of the tutorial we are going to create the smart contract that handles the registration of users; then we are going to deploy the smart contract to the blockchain using Truffle.

If you missed the introduction and you want to know what this tutorial is about, please read the intro.

This part of tutorial is divided into three sections:

1. Set up of the truffle environment.
2. Smart contract development.
3. Deploy the smart contract to the blockchain.

Note before you start: if you are using Windows you must use Power Shell as terminal.

Set up of the truffle environment

First let’s create the project folder called ethereum-vuejs-dapp, then open the terminal in the folder just created and run the following command:

$ truffle init

This command initializes the truffle project and creates the following items:

• contracts: folder containing the smart contracts written in Solidity.
• migrations: folder containing the files that take care of the deployment.
• test: folder containing the files for testing the smart contracts.
• truffle.js: file that contains the list of blockchain networks where you can deploy your contracts.

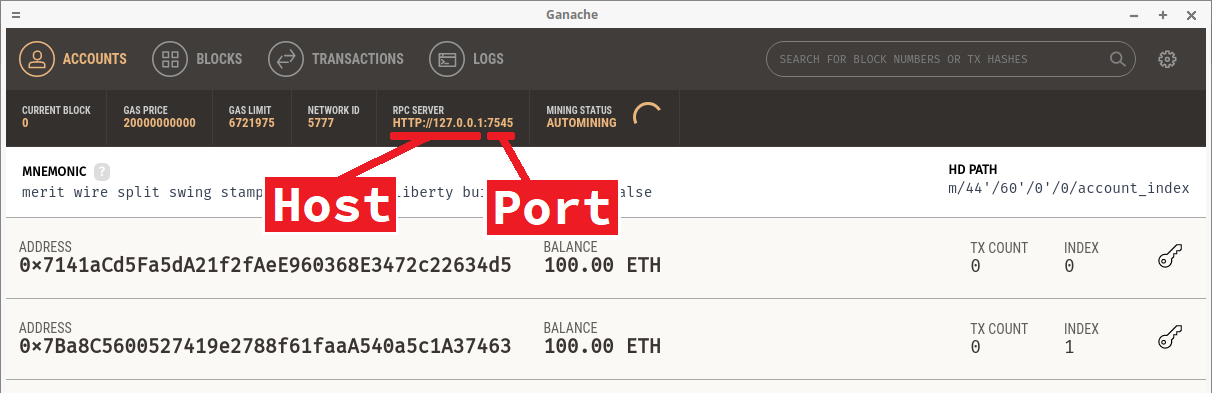

Let’s add the details of our blockchain network to the file truffle.js. So first start Ganache and, once it runs, check the host and the port as shown below.

Now paste the following code in truffle.js:

IMPORTANT: make sure that the host and the port of the code pasted in truffle.js match with the settings displayed in Ganache.

Smart contract development

As described in the introduction, the main features of our dApp are:

• Let users resister their profiles.
• The owner of a profile is the only person who can edit his own information.

The following information of a user’s profile is going to be stored in the blockchain:

• Name of the owner.
• Status.
• When the profile has been created and updated.

What we need is to store the list of the users and associate each user with an account address (or wallet address).

The smart contract must provide a set of functions that:

• Let the user register his profile.
• Let the owner of a profile update his details.
• Get the list of users and their details.
• Check if the user is already registered.

Below is the code of the smart contract (you can find it on GitHub as well).

Deploy the smart contract to the blockchain

It’s time to deploy the smart contract to the blockchain! Make sure that your blockchain is running and the file truffle.js is properly set as explained before.

Go to the folder migration and create a file called 2_migrate_users.js.
The migration filename has a number as prefix and a description as suffix. The numbered prefix is required in order to record whether the migration ran successfully and the suffix just describes what the file is about.

Copy and paste the following code inside the file 2_migrate_users.js:

Now let’s open the terminal in the project folder ethereum-vuejs-dapp and run the command:

$ truffle console ––network ganache

Once the truffle console is running, type the following command:

>> migrate ––reset ––compile-all

This command compiles all smart contracts and deploys the smart contracts to the blockchain.

If everything went fine, on the console you should see a message as follows:

Compiling .\contracts\Migrations.sol...
Compiling .\contracts\Users.sol...
Writing artifacts to .\build\contracts

Using network 'ganache'.

Running migration: 1_initial_migration.js
  Replacing Migrations...
  ... 0x18edd24941e9b7edfae4966af544d5413e31622da90cecae2d3153635a7ffba2
  Migrations: 0xcac26201ab3b38d2f0f9b56f81a8897dfe036da6
Saving successful migration to network...
  ... 0x125c70f37e143b13acb4827dda16e8571758402db81c08a3a2ae27573910105f
Saving artifacts...
Running migration: 2_migrate_users.js
  Replacing Users...
  ... 0x043c2cf363da321b8a1ec06672f12fd794bf894342fa51100250bc6975806385
  Users: 0x782b9ce19fe792ed3c4ccbfb439ab59ddc5369f2
Saving successful migration to network...
  ... 0x9e56386f94093c4f56f6b84190503376363f15a6d16661e7bfaa8fefe1b4be1f
Saving artifacts...
truffle(ganache)>

After the deployment you will see on Ganache some new transactions in the transaction list.

In the second part of the tutorial we will build the dApp interface using Vue JS and interact with the smart contracts through the interface.

The second part of the tutorial is on the way… see you soon!

This is a simple decentralized application built using Ethereum blockchain and VueJS for the front-end. This DApp example lets the users store their name and status on the blockchain.

Brief description

The DApp allows users to register their name and status on the blockchain. The user’s profile is associated with an account address (or wallet address).

The owner of the profile is the only person who can modify his own data. This will give you a technical explanation of what it means when the user is in control of his own data (just like Facebook… sarcasm!).
The smart contract is designed to give the user control of his own information and not even the creator of the smart contract can control any data.

This tutorial is split in two parts:

• PART 1 (coming soon): set up of the truffle environment, brief explanation of the smart contract and deploy the smart contract to the blockchain.
• PART 2 (coming soon): set up Vue JS and explanation of the project structure.

Prerequisite

• NPM version 5.8.0
• TRUFFLE verson 4.1.5
• Ganache or your private network.
• Metamask: not mandatory but better if you want to insert different profiles.

Quick Start

1. Download the project and decompress it into the folder ~/ethereum-vuejs-dapp (or wherever you want).
2. Start Ganache (or your private blockchain).
3. Open the terminal (if you are using Windows you must use the Power Shell) in the folder ~/ethereum-vuejs-dapp and run the command:

   $ truffle console ––network ganache

4. If ganache is running you should be inside the truffle console; now run the following command in the truffle console:

   > migrate ––reset ––compile-all

5. If the migration was successful, copy the content of the file ~/ethereum-vuejs-dapp/build/contracts/Users.json into ~/ethereum-vuejs-dapp/app-users/src/assets/UsersContract.json
6. Open another terminal in the folder ~/ethereum-vuejs-dapp/app-users and run the command:

   $ npm install

7. Once all the dependencies are installed run the command:

   $ npm run dev

   If everything went fine you should see this message:

   Your application is running here: http://localhost:8080

8. Open the browser and go to URL above to try the DApp!

NOTE: if you want to try to add more profiles you have to install metamask in your browser, then import the accounts into metamask and finally change account on metamask in order to register a new profile.
